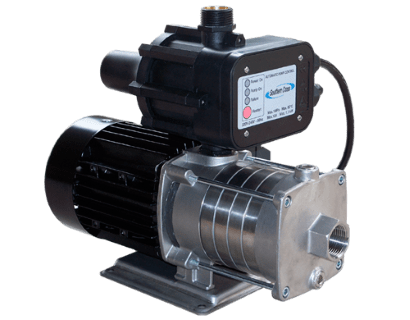

SOUTHERN CROSS 0.81kW Single Phase Multistage Pressure System
The Southern Cross 0.81kW multistage pressure system is a robust stainless steel pump designed for automatic water pressure boosting in domestic applications, light industry, wash down, rural properties, and stock watering. Its durable construction ensures reliable, long-term performance.
Key Features:
PRESSCONTROL systems provide precise pressure and flow control without a pressure tank
Available with 8L and 18L anti-corrosion pressure tanks with fixed Butyl diaphragms
Full stainless steel pump construction
Brass suction line check valve included
Maximum pressure: 550 kPa (80 psi)
Maximum flow: 130 L/min (suitable for up to 11 taps)
Easy installation and operation, supplied with 1.8m lead and 3-pin plug
PRESSCONTROL Advantages:
Maintains consistent pressure and flow without a pressure tank
Eliminates cycling and protects against dry running
No additional pump protection devices required
Maintenance-free, space-saving design
Simple 25mm male connections
Reduces energy consumption and extends motor life
Construction Materials:
Suction Chamber: 304SS
Pump Housing: 304SS
Intermediate Chamber: 304SS
Impeller: 304SS
Shaft: 431SS
Shaft Seal: SIC/Carbon
Drain & Priming Plugs: 304SS
Base Plate: 304SS
Warranty: 2 years
Weight: 14 kg
For expert advice on selecting the right pump for your needs, contact Global Pump Engineering.
